Quick Summary
A forklift battery size chart should include more than just voltage information. The correct replacement battery must match the electric lift truck model, battery compartment dimensions, approved weight range, amp-hour capacity, connector type, cable configuration, and charging system. Green Power Forklift Batteries recommends collecting the truck and battery nameplate details before measuring the existing unit. A model-specific quote is more reliable than selecting from a basic chart because batteries with the same voltage can have major differences in size, weight, capacity, and compatibility.
A forklift battery size chart is most useful when it connects an electric lift truck model to a complete set of battery specifications. Voltage alone does not determine fit. The replacement must fit the compartment, meet the manufacturer’s weight requirements, deliver suitable amp-hour capacity, and connect correctly to the truck and charger.
Green Power Forklift Batteries supplies new and reconditioned batteries for electric forklift systems, including common 24V, 36V, 48V, and 80V configurations. We recommend verifying the manufacturer, model, serial information, and existing battery data before ordering.
What Information Belongs in a Forklift Battery Size Chart?
A reliable battery sizing chart or fitment record should include enough information to separate batteries that may appear similar but are not interchangeable. Collect specifications from the forklift, current battery, and charger, including:
- Electric forklift manufacturer, model number, and serial number
- Battery model number, voltage, cell count, and amp-hour capacity
- Overall length, width, and height of the battery case
- Required minimum and maximum battery weight
- Compartment dimensions, cover clearance, and restraint arrangement
- Connector type, color or keying, cable length, and cable position
- Charger voltage, output rating, chemistry profile, and AC input
A generic voltage list cannot replace these details. The same 36V battery family may be offered in several tray sizes, capacities, and weights for different truck designs.
Keep the completed fitment record with the fleet maintenance files. The same record can speed future quotes and reduce errors when another battery reaches replacement age. Update it after any connector, cable, or charger change.
Step One: Identify the Electric Lift Truck and Existing Battery
Begin with the forklift data plate and operator manual. Record the manufacturer, exact model, serial number, approved battery voltage, compartment dimensions, and required battery weight range. Some forklift models may have different battery compartments or counterweight requirements depending on the configuration.
Next, photograph or record the current battery nameplate information. Include the model number, voltage, amp-hour capacity, dimensions, weight, connector type, and cable arrangement. If the current battery fit properly and delivered the expected performance, these details create a useful reference point for replacement.
Step Two: Verify Voltage and Cell Count
Industrial lead-acid cells are nominally rated at 2 volts each. A 24V battery commonly has 12 cells, a 36V battery has 18 cells, a 48V battery has 24 cells, and an 80V battery has 40 cells. Confirm the nameplate and truck specification instead of estimating by appearance.

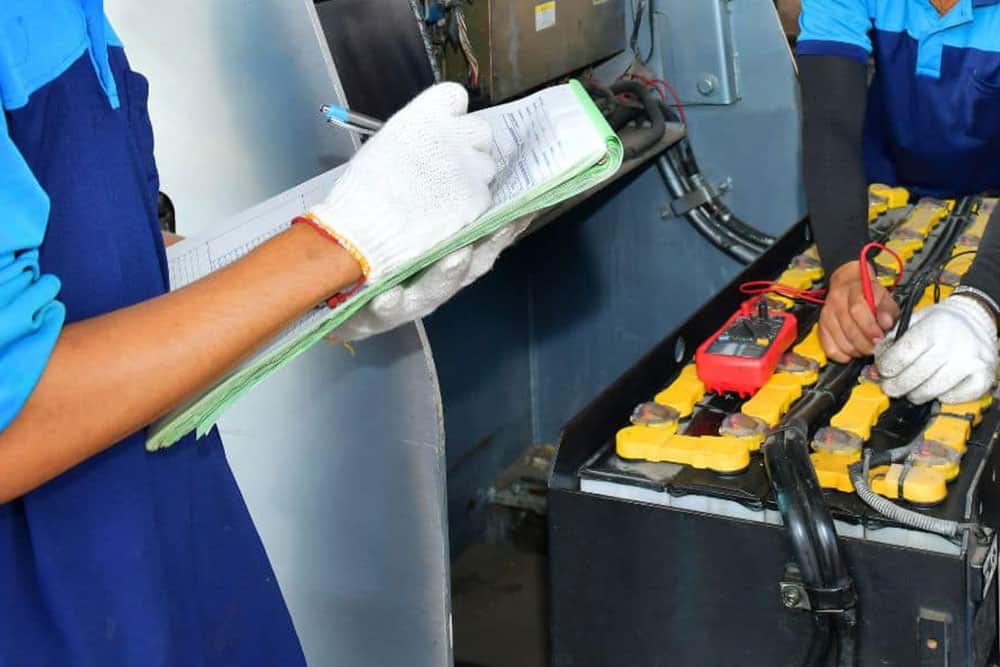

A fully charged flooded lead-acid cell should show a stable voltage of approximately 2.1 to 2.2 volts. Cell readings can help with battery evaluation, but they do not change the required nominal system voltage. The replacement battery and charger must match the truck’s approved voltage.
Step Three: Measure Battery Length, Width, and Height
Measure the actual battery case instead of only measuring the open compartment area. Record the length, width, and height at the largest fixed points. Include details such as lifting eyes, handles, covers, cable exits, connector placement, and tray features that may affect installation clearance.
Measure the forklift battery compartment and available vertical space as well. A battery that is slightly oversized may not sit correctly, while excessive space can affect restraints and positioning. Confirm all measurements against forklift specifications before shipment.
Step Four: Match the Required Battery Weight
In many electric counterbalance forklifts, the industrial battery contributes to the truck’s designed counterweight. A battery outside the approved weight range can affect stability, rated capacity, steering, and braking behavior. Weight is therefore a fitment and safety specification, not just a shipping detail.
Use the truck data plate or manufacturer documentation to identify the allowed battery weight range. Do not assume that a physically smaller or lighter battery is acceptable because it fits inside the compartment.
Step Five: Choose Amp-Hour Capacity for the Workload
Amp-hour capacity affects how much energy the battery can deliver before charging. The right capacity depends on shift length, travel distance, load weight, attachment use, floor conditions, temperature, and available charging time. Cold environments and long travel routes can increase energy demand.
A higher-capacity battery is not automatically better. It must fit the approved case size and weight range, and the charger must be able to replenish it within the available window. Compare actual operating demand with the battery rating rather than selecting the largest number on a chart.
Step Six: Confirm Connector and Cable Configuration
The battery connector must match the forklift and charger in type, keying, and current rating. Record the connector color, housing style, contact size, cable gauge, cable length, and cable exit location from the battery case.
A battery may have the correct size and voltage but still be unusable if the cable cannot reach correctly or the connector does not match. Avoid modifying connectors or cables unless qualified personnel and equipment manufacturers approve the change.
Step Seven: Check Charger Compatibility Before Ordering
Confirm that the existing charger matches the new battery voltage, chemistry, and amp-hour range. A replacement with greater capacity may require a different charger output or a longer charging window. Lithium-ion batteries generally require an approved charging system and battery management communication.
We offer forklift battery chargers for multiple material handling applications. Reviewing the battery and charger together can prevent incomplete charging, excess heat, and installation delays.
Common Forklift Battery Sizing Mistakes
- Using only the forklift brand without the exact model and serial information
- Matching voltage while ignoring dimensions, weight, and amp-hour capacity
- Measuring the compartment but not the existing battery and cable exits
- Assuming a lighter battery is acceptable in a counterbalance forklift
- Ordering a different chemistry without checking charger compatibility
- Leaving out the shipping city, state, ZIP code, or country when requesting pricing
Use Green Power’s Model-Specific Battery Resource Tool
Our online forklift battery quote tool lets buyers select a forklift manufacturer and model, review available battery information, and submit application details. Include the shipping location, battery specifications, and any questions about fitment, capacity, pricing, or lead time.
Our own new forklift batteries are available across a broad voltage range and include an industry-leading 7-year warranty on most units. For a lower initial price, buyers can also compare refurbished forklift batteries sold as finished replacement products. We do not offer repair or reconditioning services for customer-owned batteries.
Request the Correct Battery Size for Your Electric Lift Truck
Send us the electric forklift manufacturer, model, serial number, battery voltage, amp-hour rating, dimensions, weight, connector details, charger information, and shipping location. Complete information helps us compare fitment, product options, price, warranty, and lead time without unnecessary delays.
Frequently Asked Questions
Can I choose a forklift battery using voltage alone?
No. Voltage must match, but the battery also needs the correct dimensions, weight, amp-hour capacity, connector, cable arrangement, chemistry, and charger compatibility.
How do I measure a forklift battery correctly?
Measure the battery case length, width, and height at the widest fixed points. Record cover height, lifting features, cable exits, connector position, and the compartment clearance.
Why does forklift battery weight matter?
The battery may be part of the electric forklift’s counterweight system. Using a battery outside the manufacturer’s approved weight range can affect stability and rated performance.
Can I install a higher amp-hour battery in the same forklift?
Possibly, but only when the case dimensions, weight, voltage, connector, and charger remain compatible. The truck and battery manufacturer specifications should be reviewed before changing capacity.
